Architecture Documentation¶
This directory contains architecture plans, design documents, and system diagrams for implementation or in active development.
Process¶
Architecture documents typically originate from approved RFCs in docs/rfcs/. Once an RFC is approved, a detailed architecture plan is created here as a new document that references the source RFC (the RFC remains in docs/rfcs/ as historical record).
Architecture Documents¶
| Document | Status | Date | Description |
|---|---|---|---|
| Python FastAPI Microservice with JWT Authentication | Implemented | 2025-12-01 | JWT authentication integration with Python AI service |
Architecture Diagrams¶
Diagrams are stored in the docs/architecture/diagrams/ subdirectory.
| Diagram | Description | Last Updated |
|---|---|---|

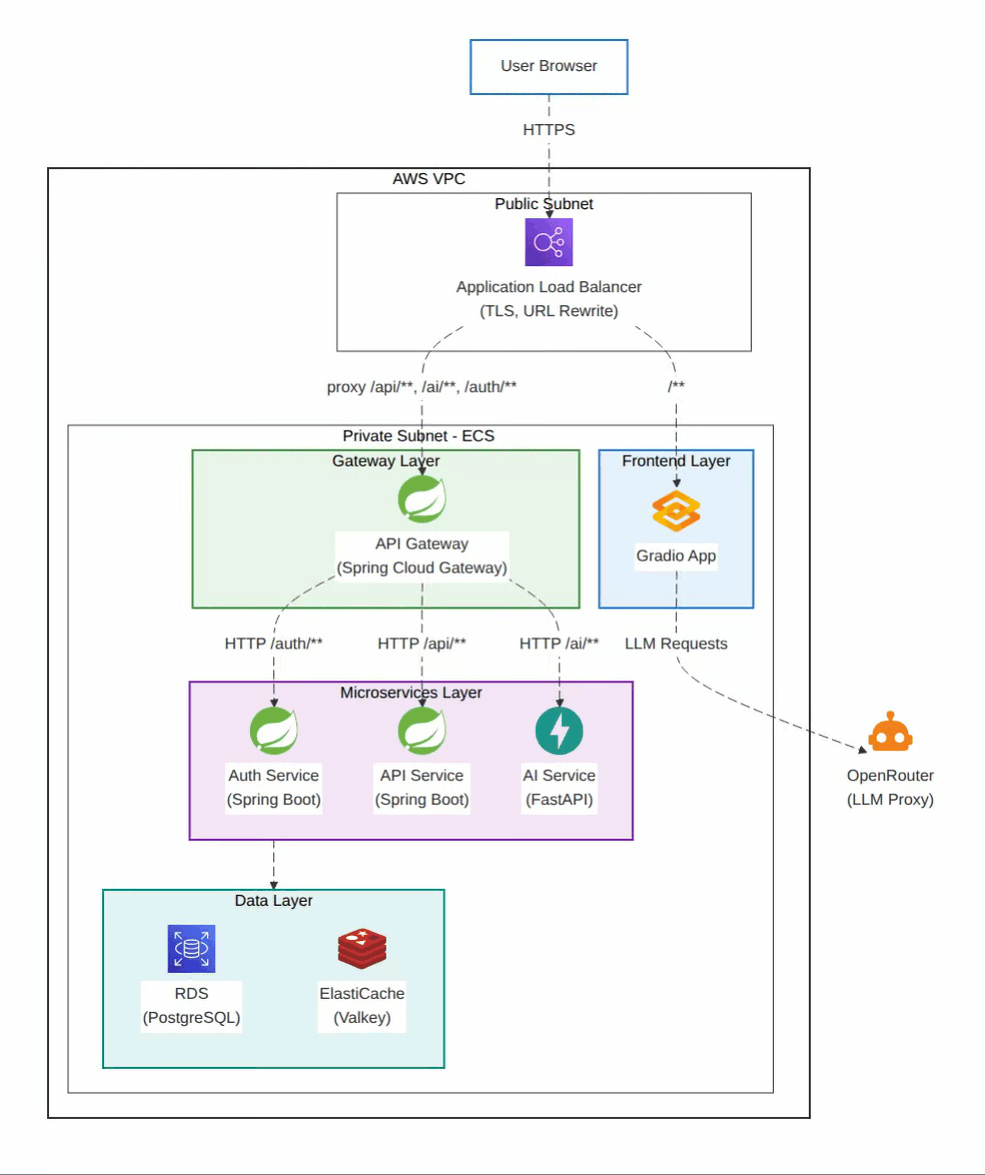

| BixArena Architecture | Current system architecture | 2026-01-26 |

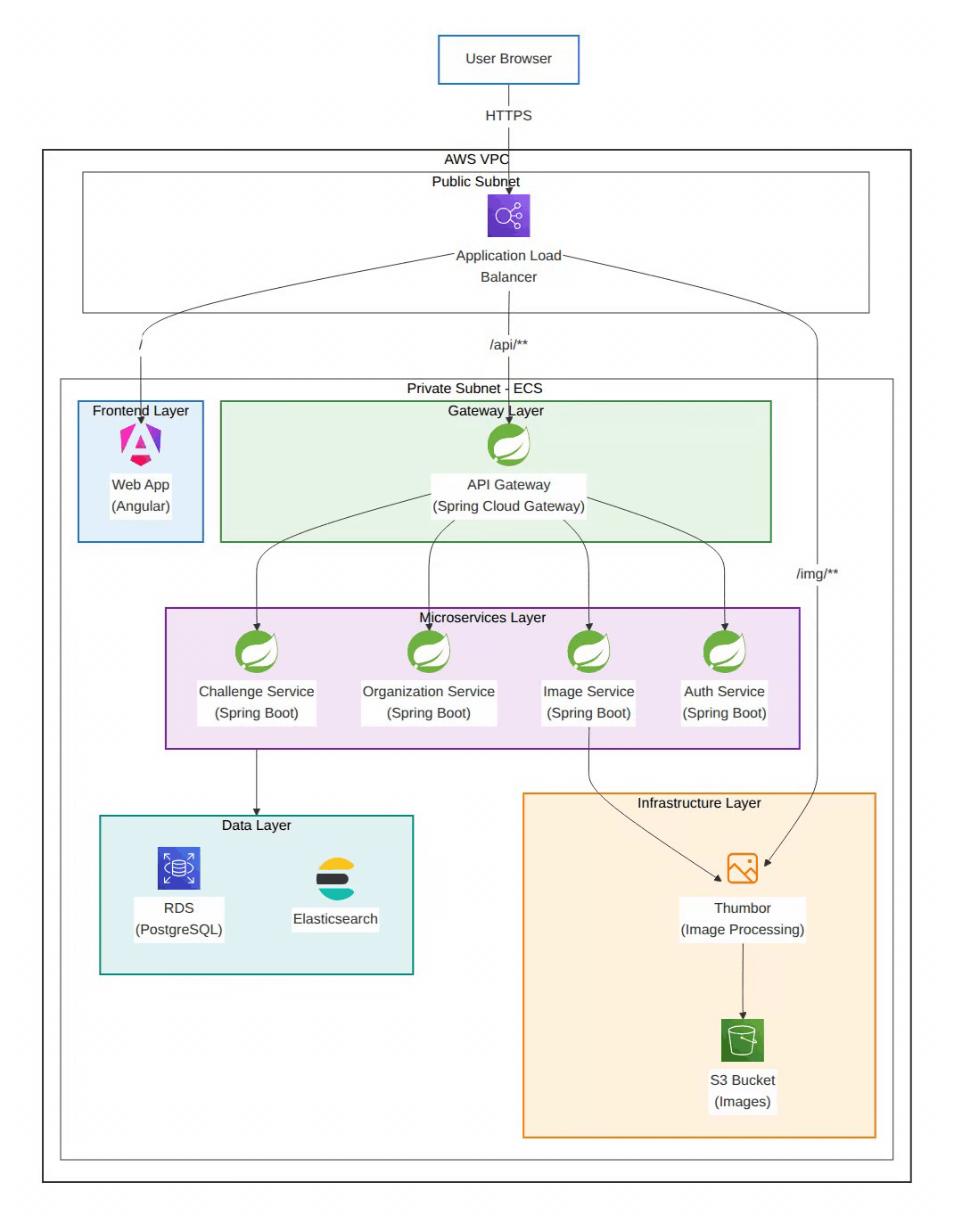

| OpenChallenges Architecture | Current system architecture | 2026-01-26 |
Directory Structure¶
architecture/
├── README.md # This file
├── diagrams/ # Architecture diagrams (*.gif, *.png, *.svg, *.html)
│ ├── bixarena-architecture.gif
│ └── bixarena-architecture-v1.gif
└── *.md # Architecture documents
Template¶
See template.md for the architecture plan template.
Submitting an Architecture Plan¶
See the Documentation Submission Workflow guide for detailed step-by-step instructions on the two-PR process.
Guidelines¶
- Documents in this directory are for implementation (source RFC was approved)
- Use past or present tense (not future/proposal tense)
- Keep documents updated as implementation evolves
- Reference related ADRs and RFCs for context
- Store diagrams in the
docs/architecture/diagrams/subdirectory (supports.gif,.png,.svg,.htmlwith Mermaid)
Document Status Definitions¶
- Active: Architecture plan is available and ready for implementation or in progress
- Implemented: Completed and deployed
- Superseded: Replaced by newer design (archive or add note)
